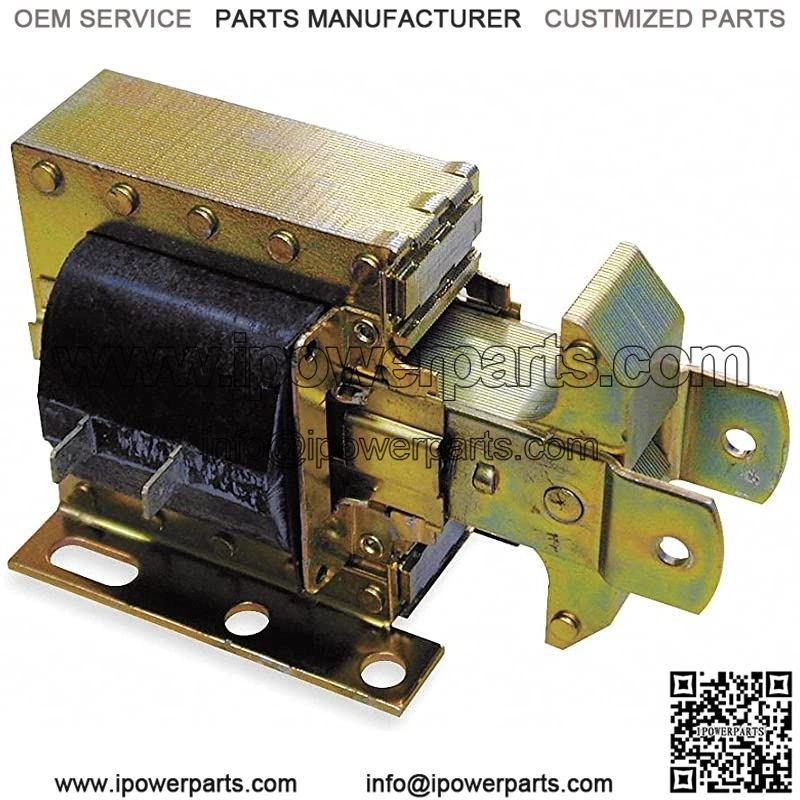

Solenoid, 120VAC Coil Volts, Stroke Range: 1/8″ to 1-1/4″, Duty Cycle: Continuous
Solenoid, 120VAC Coil Volts, Stroke Range: 1/8″ to 1-1/4″, Duty Cycle: Continuous
Item: Solenoid
Solenoid Type: Laminated
Stroke Range: 1/8″ to 1-1/4″
Pull Force Range: 188.8 to 256.0 oz.
Width: 2-3/8″
Laminated Pull-type Continuous duty cycle rated at 25??CConstructed of durable laminated steel with corrosion-resistant frame and plunger. Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel plunger springs, and brass plunger guides. Class A coil insulation with solder lug coil terminals.SolenoidsRoHS Compliant.
Item: Solenoid
Solenoid Type: Laminated
Stroke Range: 1/8″ to 1-1/4″
Pull Force Range: 188.8 to 256.0 oz.
Width: 2-3/8″
Depth: 2-15/16″
Length: 3″
Coil Volts: 120VAC
Seated Amps: 0.66
Seated Watts: 25.0
Coil Resistance: 6.5 ohm
Terminals: Solder Lug Coil
Amps @ Max. Stroke: 12.00
Duty Cycle: Continuous
Mounting Holes: 2 x 1-7/8″
Gravity Value: 12.64 oz.
Pull @ 1/2 In. Stroke: 1.0 oz.
Pull @ 3/8 In. Stroke: 2.0 oz.
Pull @ 1/4 In. Stroke: 4.0 oz.
Pull @ 1/8 In. Stroke: 10.0 oz.
